Ordnance Pamphlet 1457 contains the abridged range tables for the 16-inch armor-piercing Mark 8 Mod 0, 2700-lb projectile fired from the 16″/50 caliber gun at an initial velocity of 2425 feet per second — the main battery of the Iowa-class battleships. The eight scanned pages below cover the explanatory notes and the full range-table sheets. Click any page to enlarge.

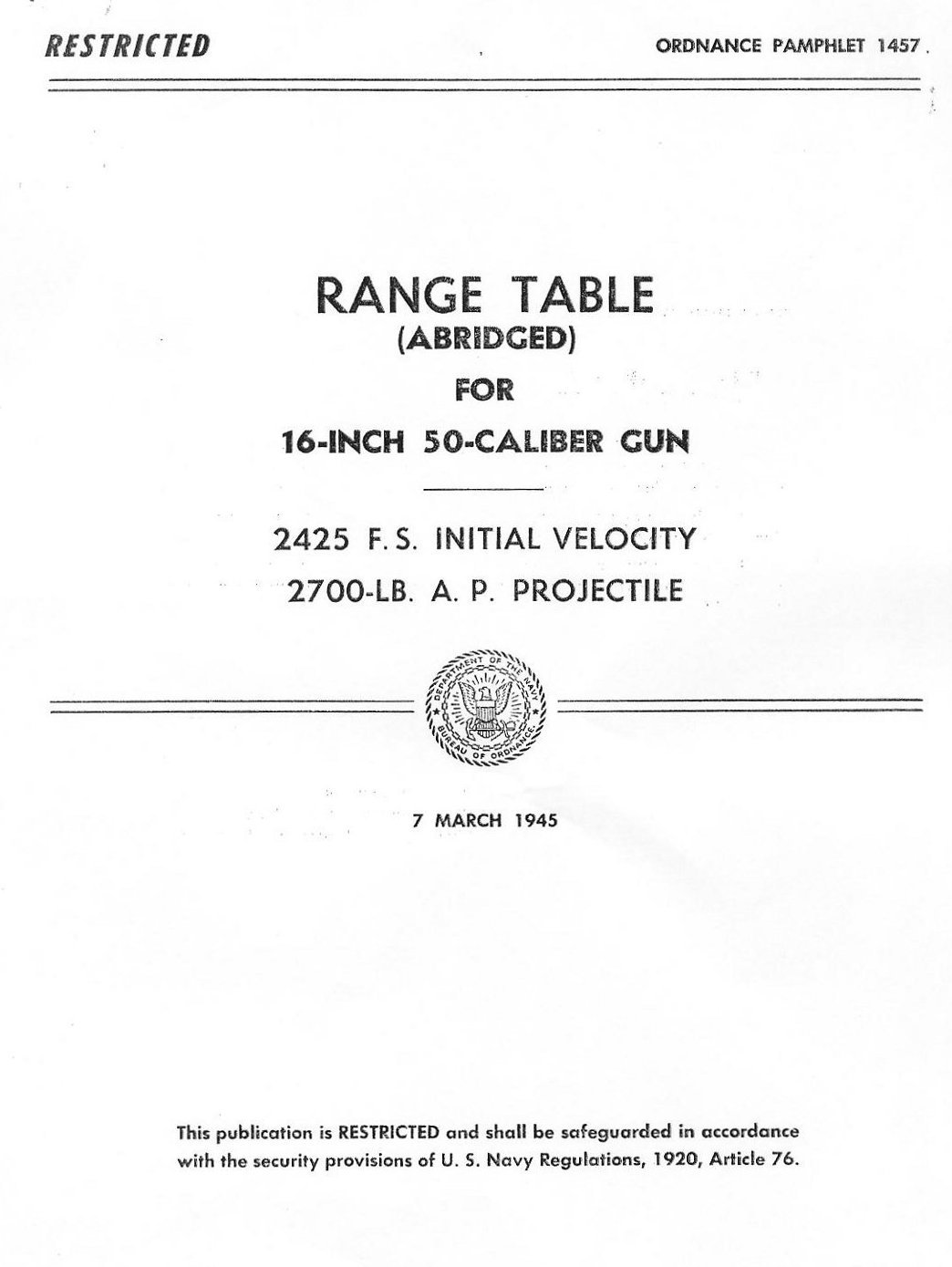

Page 1 — click to enlarge

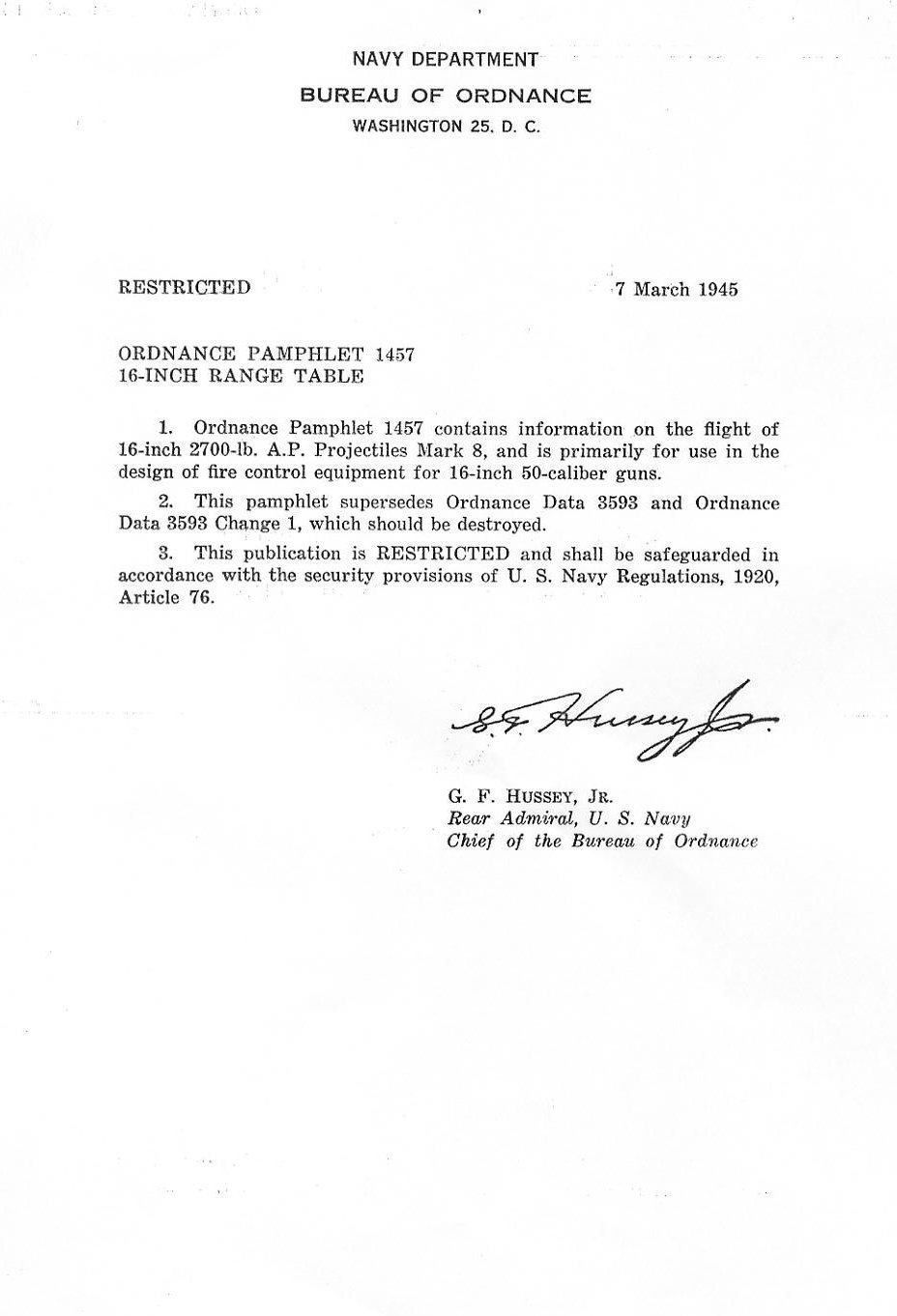

Page 2 — click to enlarge

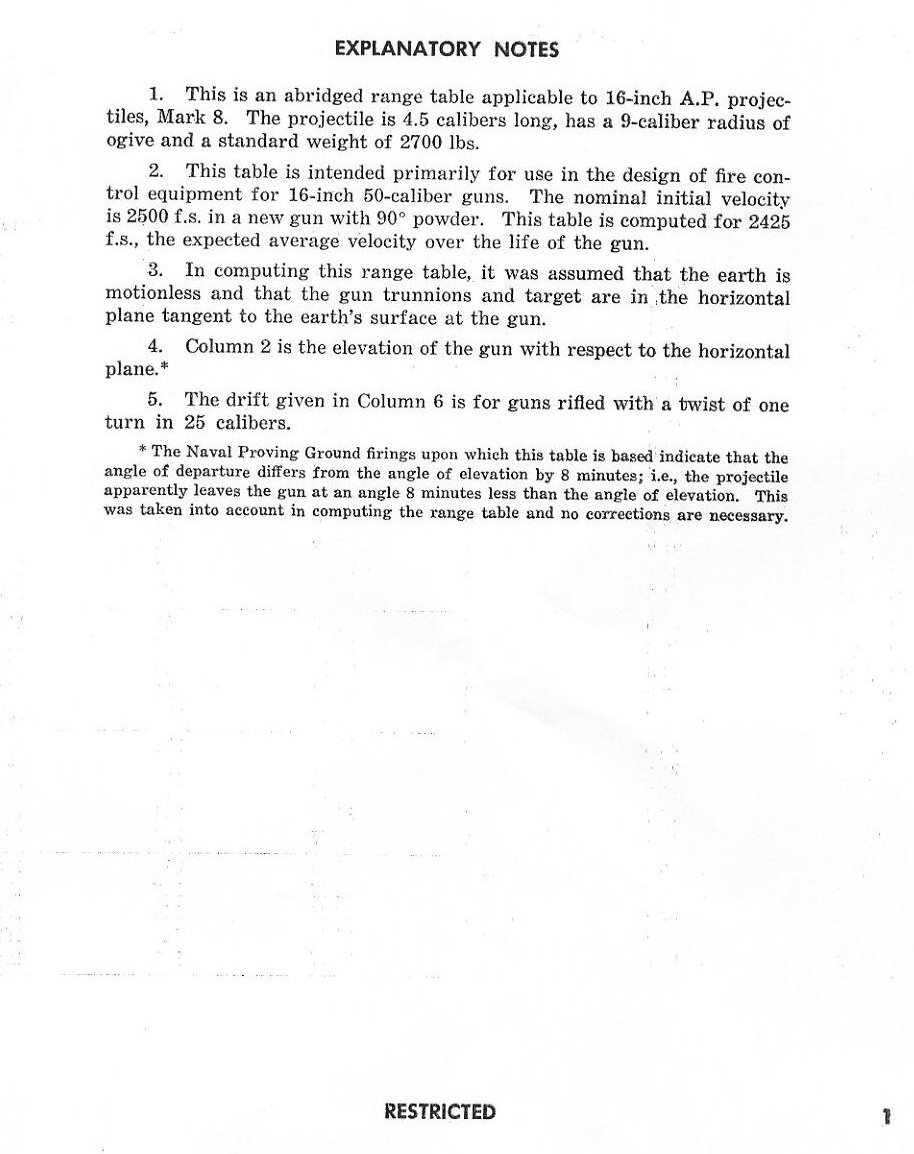

Page 3 — click to enlarge

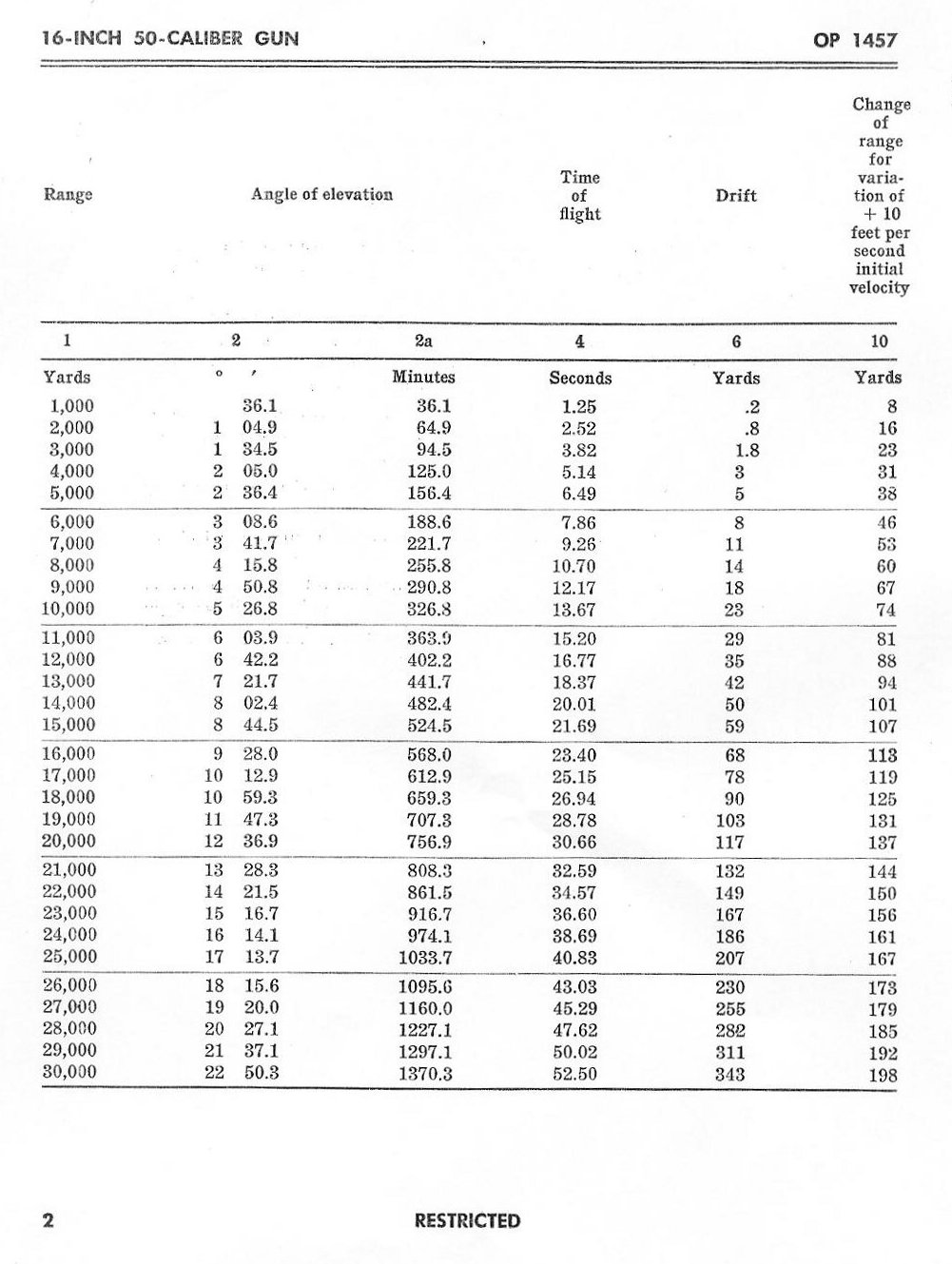

Page 4 — click to enlarge

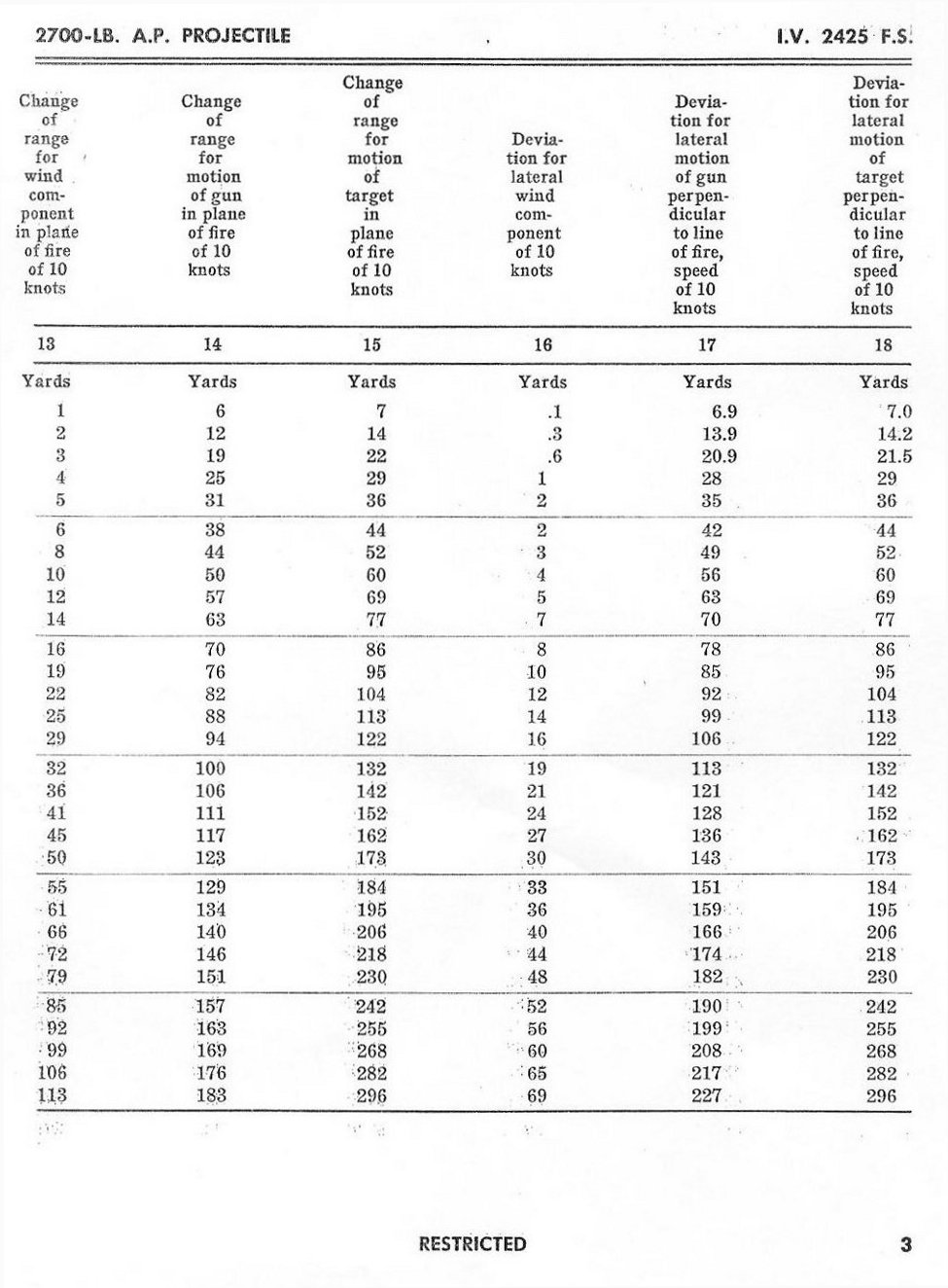

Page 5 — click to enlarge

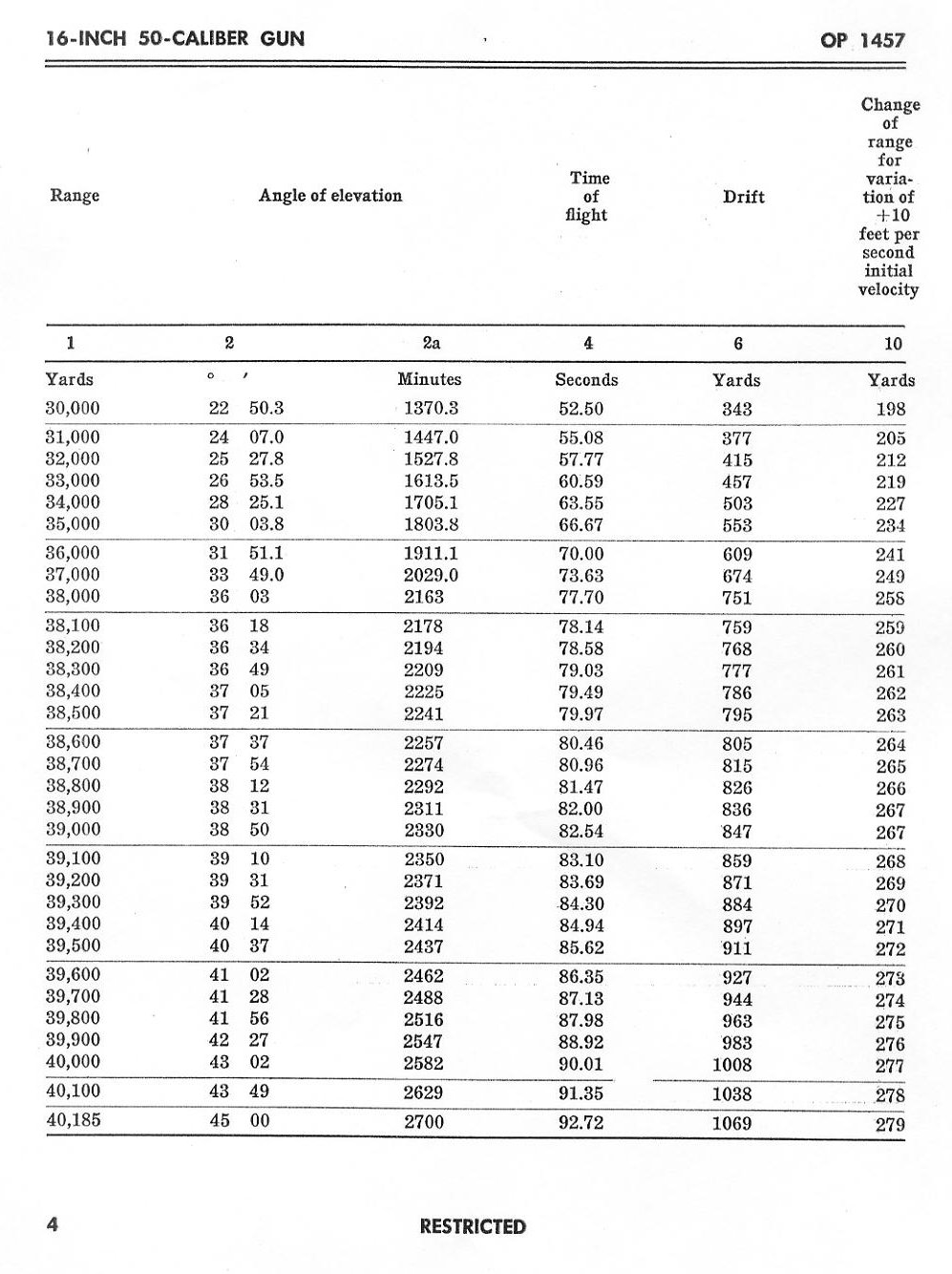

Page 6 — click to enlarge

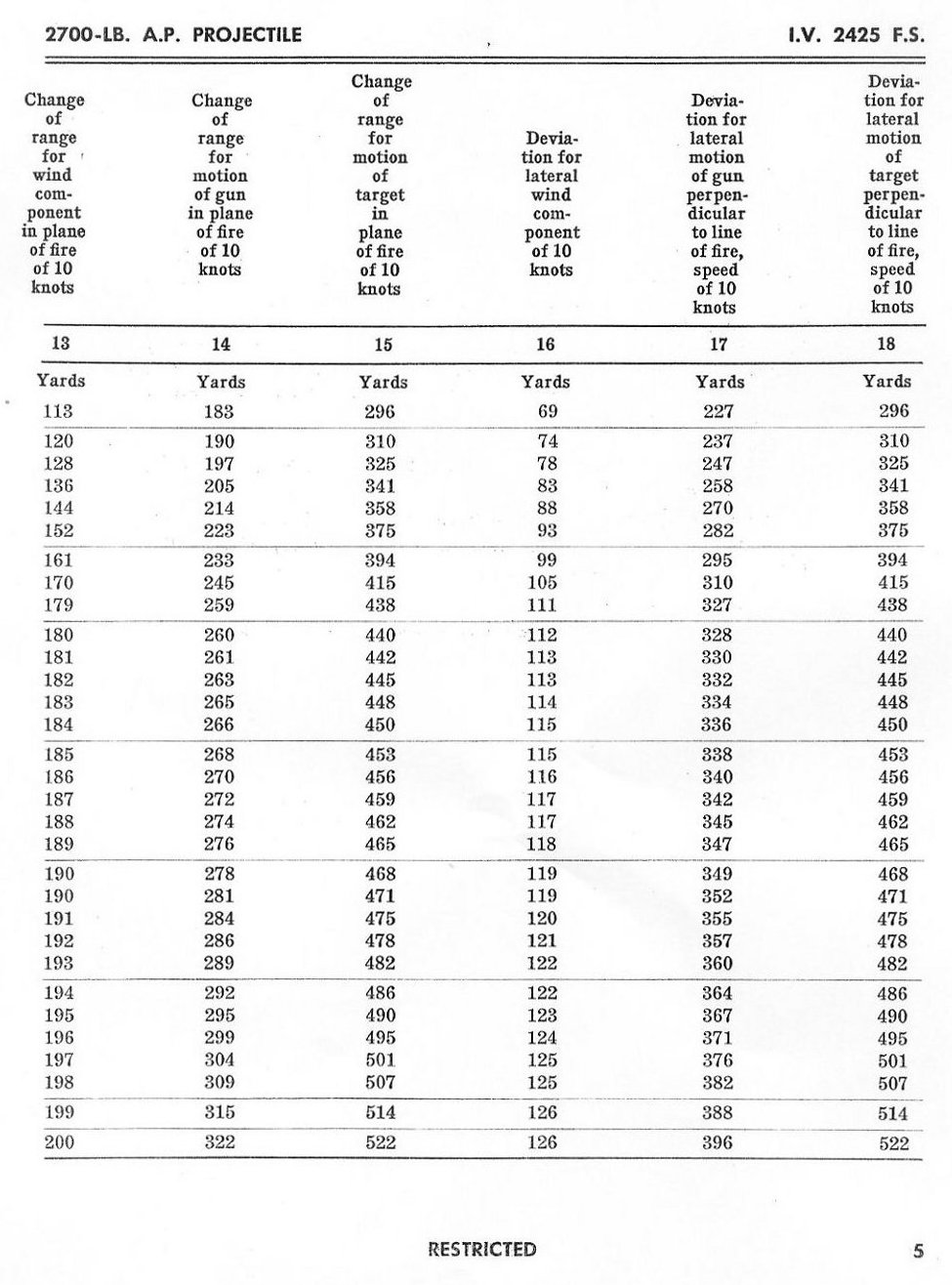

Page 7 — click to enlarge

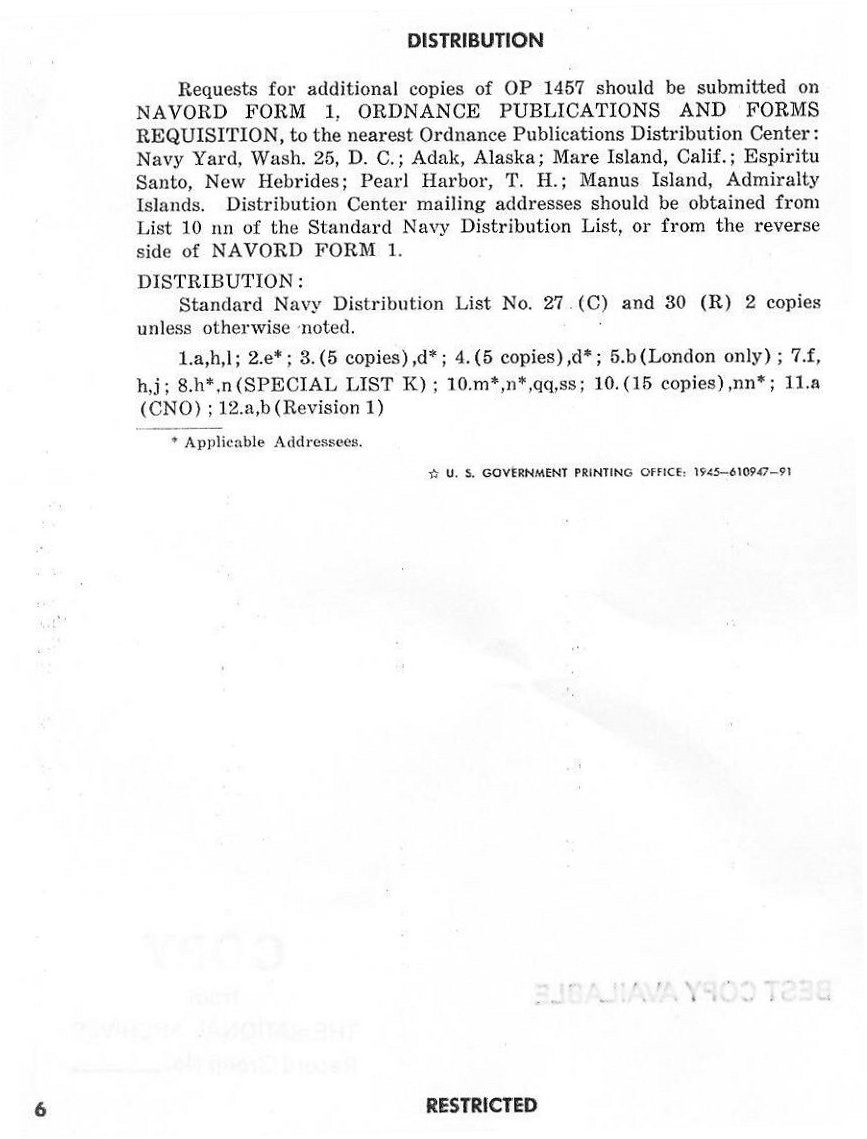

Page 8 — click to enlarge
